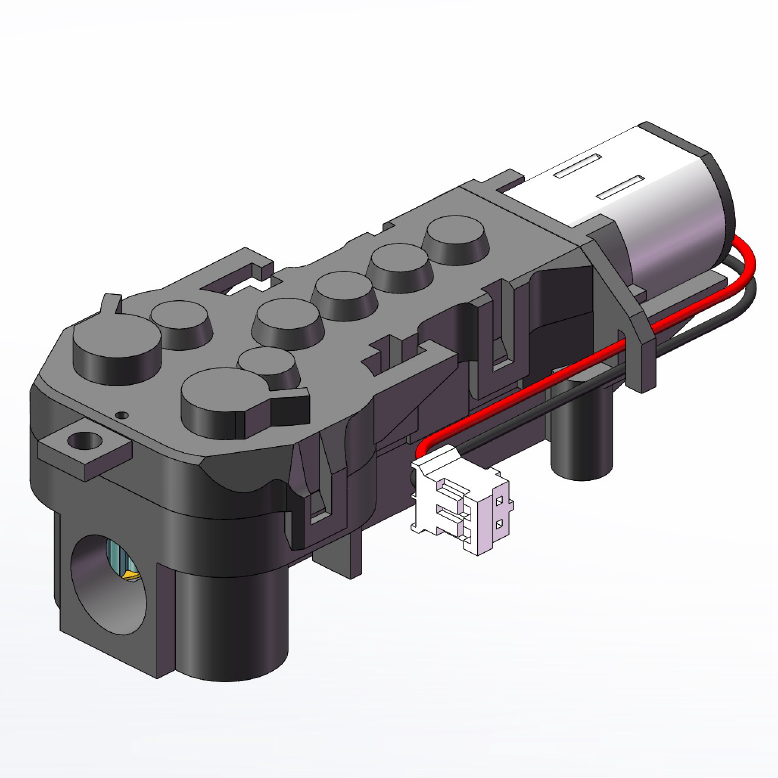

FDM送料机构，是我公司自主研发的7mm热熔胶条电动送料装置。它的特点是

1、使用N20直流有刷电机驱动，2V~5V宽电压工作，送胶负载电流200mA以下

2、使用直齿面齿轮传动和直齿轮传动，传动效率高

3、使用齿顶圆齿厚为0的齿轮两侧滚动送料，胶条运行平稳

4、外形尺寸65*27*22.5，结构小巧，布局紧凑

5、滚料轮施加10kg的推力不会损坏传动机构

FDM feeding mechanism is a 7 mm hot-melt adhesive strip electric feeding device independently developed by our company. It is characterized by 1. Use N20 DC brush motor to drive, 2 V ~ 5 V wide voltage operation, glue feeding load current below 200 mA 2, the use of spur face gear transmission and spur gear transmission, high transmission efficiency 3. Use both sides of the gear with tooth top circle and tooth thickness of 0 to roll and feed, and the rubber strip runs smoothly. 4, size 65 * 27 * 22.5, compact structure, compact layout 5. The transmission mechanism will not be damaged if the rolling wheel applies a thrust of 10 kg.
